Custom Made Full Auto Glass Mosaic Cathodic Arc Deposition System

Custom Made Full Auto Glass Mosaic Cathodic Arc Deposition System

Brand Name:	JXS
MOQ:	1 Set
Payment Terms:	T/T, L/C
Supply Ability:	100 Sets/Year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Structure:

Vertical Single Front Open Door

Vacuum Chamber Inner Size:

Custom Made

Vacuum Chamber Material:

Stainless Steel

Pump Group:

Rotary Vane Pump+Roots Pump+Diffusion Pump

Pump Brand:

China

Cart:

1 Set

Packaging Details:

Wooden Case, Plastic Film

Highlight:

Cathodic Arc Deposition System

Glass Mosaic Deposition System

Product Description

Custom Made Full Auto Glass Mosaic Cathodic Arc Deposition System

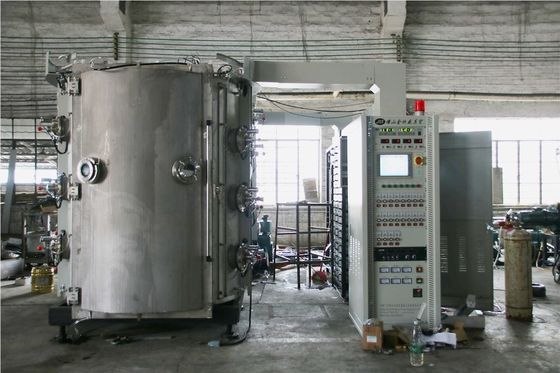

Main parts of cathodic arc deposition system are vacuum chamber, vacuum pump and electrical cabinet. Vacuum chamber material is stainless steel and inner size can be custom made. Vacuum pump combination is rotary vane pump+roots pump+diffusion pump. Full auto touch screen control system is for convenient operation.

Other Configuration

Arc Target Size	Diameter100mm x Thickness40mm
Arc Power Supply	200A
Heating System	1 Set

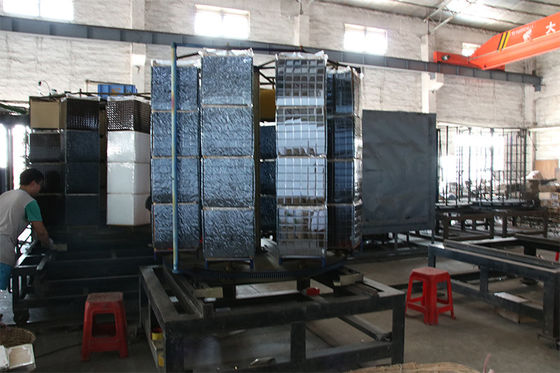

Rotation Stand	2 Sets
Working Theory	Cathodic Arc(Multi Arc)
Warranty Period	1 Year

Cathodic Arc Deposition Glass Mosaic

Custom Made Full Auto Glass Mosaic Cathodic Arc Deposition System

After cathodic arc deposition, glass mosaic will show gold, rose gold, silver, blue, gray, black and rainbow such colors. Above decorative colors will increase selling value of glass mosaic and improve viewing feeling. Strong film adhesion will enlarge glass mosaic using life.

FAQ

What is whole cathodic arc deposition process?

Cleaning, baking, coating, inspecting, packing.

How long time for each deposition cycle?

About 15-30 minutes.

Except cathodic arc deposition system, do we need other accessory equipment?

Yes, oven, air compressor, water tower, water pump.
