One-Stop Service for PVD Vacuum Coating Machine.
From PVD vacuum coating factory building to consumable items and spare parts offering.
|Place of Origin:||China|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Wooden Case, Plastic Film|
|Delivery Time:||60 Working Days|
|Payment Terms:||T/T, L/C|
|Supply Ability:||100 Sets/Year|
|PVD Coating Technology:||Cathodic Arc||Vacuum Chamber Material:||Stainless Steel|
|Vacuum Chamber Inner Size:||Custom Made||Guarantee Period:||1 Year|
|Heating System:||1 Set||Rotation Stand:||1 Set|
Hinge PVD Vacuum Coating System,
Cathodic PVD Vacuum Coating System,
SS PVD Vacuum Coating Machine

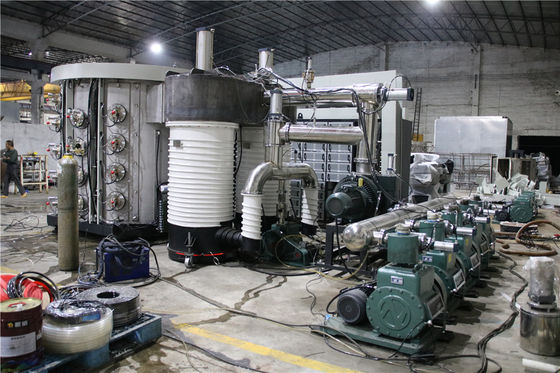

High Production Efficiency Stainless Steel Door Hinge PVD System
PVD system including vacuum chamber, vacuum pump and electrical cabinet 3 main parts. Except PVD system, water tower+water pump(chiller), air compressor and oven is also needed. PVD coating color has gold, rose gold, silver, blue, gray, black and rainbow.
PVD System Other Technical Parameters
|Pump Group||Rotary Vane Pump+Roots Pump+Diffusion Pump|
|Arc Target Size||Diameter100mm x Thickness40mm|
|Arc Power Supply||200A|
|Bias Power Supply||1 Set|
|Main Features||Safe, Green Process, Convenient Operation, High Energy Efficiency|
PVD Coating Door Hinge
Whole PVD Coating Process: Cleaning, Baking, Coating, Inspecting & Packing.
Cleaning is to clean oil, fingerprint and dust out of door hinge to make sure strong adhesion film; Baking is to bake water and dust out of door hinge to ensure strong adhesion film; Coating is to use PVD system to coat colorful PVD film on door hinge; Inspecting & Packing is to inspect PVD coating quality and pack successful PVD door hinge.
