Cathodic Arc Glass Cup Vacuum Plating Machine With Single Front Door

Cathodic Arc Glass Cup Vacuum Plating Machine With Single Front Door

Brand Name:	JXS
MOQ:	1 Set
Payment Terms:	T/T, L/C
Supply Ability:	100 Sets/Year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Place Of Origin:

China

Structure:

Vertical Single Front Door

PVD Coating Technology:

Cathodic Arc

Pumps Combination:

Vacuum Pumps+Roots Pump+Diffusion Pump

Arc Target Size:

Diameter100mm X Thickness40mm

Arc Power Supply:

200A

Bias Power Supply:

1 Set

Packaging Details:

Wooden Case, Plastic Film

Highlight:

Glass Cup Vacuum Plating Machine

Cathodic Arc Vacuum Plating Machine

200A glass coating machine

Product Description

1 Year Warranty Chinese Glass Cup Vacuum Plating Machine

1 Year Warranty Chinese Glass Cup Vacuum Plating Machine is using cathodic arc PVD coating technology for glassware, like glass cup, glass crystal, etc. PVD coating color has gold, rose gold, silver, blue, gray, black, rainbow. Full auto touch screen control system for convenient operation.

Vacuum Plating Machine Other Parameters List

Vacuum Chamber Cooling Way	Water Indirect Cooling
Features	Safe, Environmental Friendly, High Efficiency, Convenient Operation
Vacuum Chamber Inner Size	Diameter2200mm x Height2200mm
Total Rated Power	About 120kW
Needed Space	About L5xW6xH3m
Each Coating Cycle Time	About 15-30 Minutes

Vacuum Plating Glass Cup

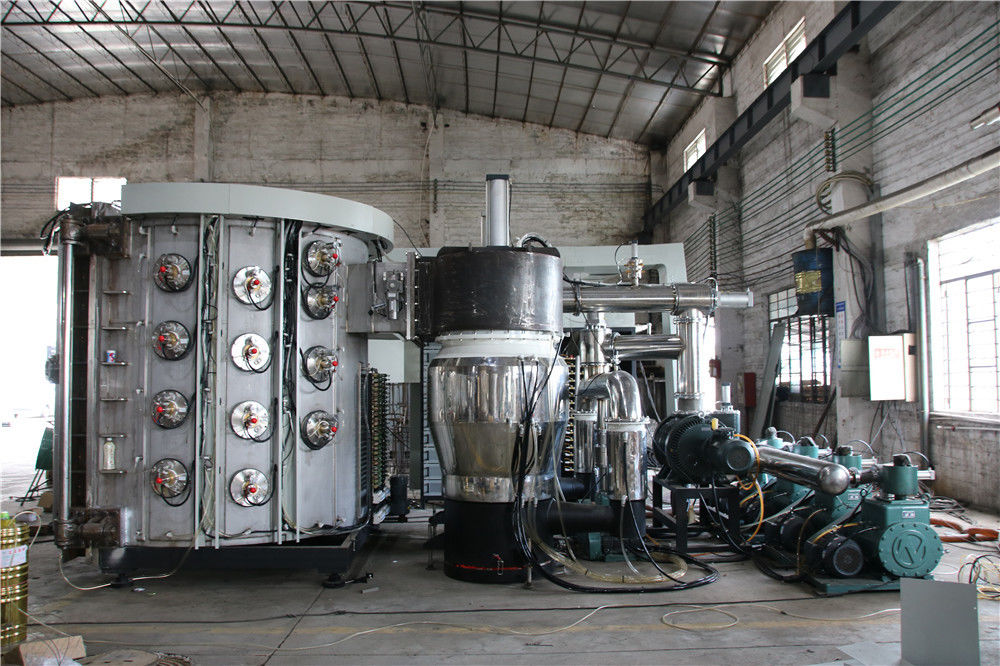

Cathodic Arc Glass Cup Vacuum Plating Machine With Single Front Door

Vacuum plating glass cup main purpose is for decoration. Coating colors on transparent glass also make it as artwork.

The machine is using down turn plate with 2 sets of rotation stand and 1 cart, such design will improve production efficiency. When 1 stand is coating, the other is unloading and loading, and then baking. After completing coating, the other stand will be sent into vacuum chamber without any interruption. The design is good for large scale production coating.

Foshan Jinxinsheng Vacuum Equipment is waiting for your inquiry. :)
