One-Stop Service for PVD Vacuum Coating Machine.
From PVD vacuum coating factory building to consumable items and spare parts offering.
 |
| Place of Origin: | China |
| Brand Name: | JXS |
| Certification: | CE |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case, Plastic Film |
| Delivery Time: | 70 Working Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 Sets/Year |
| Chamber Inner Size: | Diameter2800mm X Height2400mm | Chamber Material: | SS 304 |
|---|---|---|---|
| Structure: | 1 Cart With 3 Rotation Frames | Control System: | Full Automatic |
| Operation Way: | Touch Screen | Name: | Vacuum Plating Machine |
| High Light: | vacuum coating systems,vacuum plating machine |
||
SS 304 Ceramic Tile PVD Coating Systems , Industrial Vacuum Plating Machine
Application
It can be used to coat metal film, titanium nitride, titanium carbide, and zirconium nitride, chromium nitride and titanium, nickel, chromium, copper , and other compounds film, multi-layer super-hard film, nitrogen-doped titanium film and the alloy film ( TiN, TiC, TiCN, TiAlN, CrN, Cu, Au, Al2O3and other decorative films etc.) and in a very short time to complete all the machining process, it is a highly efficient multi-functional coating equipment.
This machine is extensively used in the fields of decorative coating for stainless steel, ceramic tile/cups, computer, mobile phone, watch& jewelry, sanitary, home appliance, hotel products etc.
PVD Ceramic Tile Samples

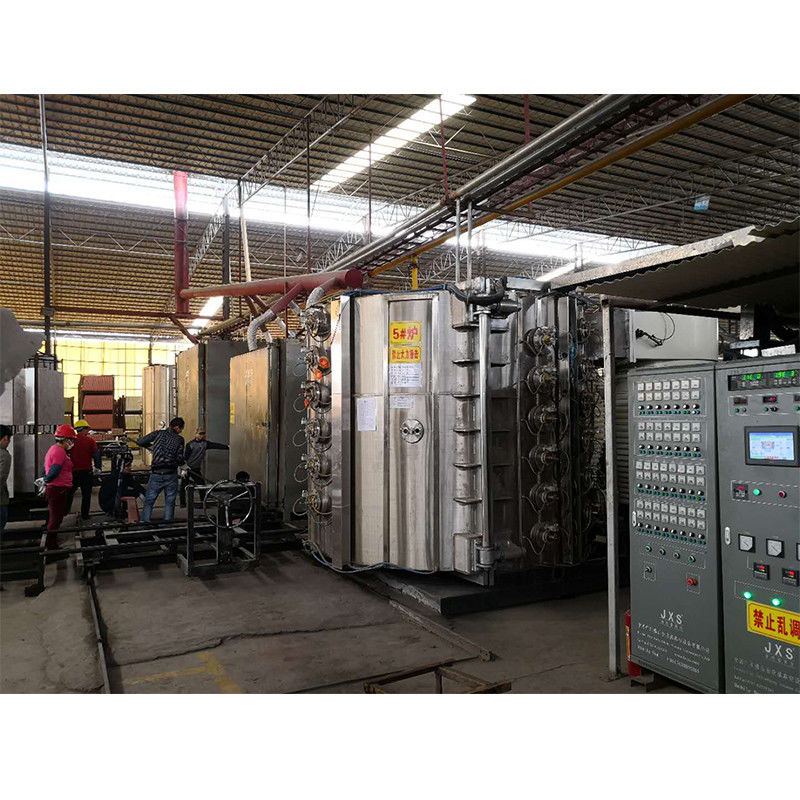

PVD Machine Picture
Other Parameters
1)Pumps: Mechnical Pumps + Roots Pump + Diffusion Pump
2)PLC Brand: Mitsubishi
3)Arc Source Size: Diameter100mm x Thickness40mm
4)Arc Source Power Supply: 200A
5)Gas Pipe: Stainless Steel
6)Cooling Way: Indrect Cooling
Pre-Sales Service
1)Free PVD samples coating
2)Technical guidance of whole PVD factory
3)Technical consult about PVD machine selection
After-Sales Service
1)Free 14 days installation and training
2)Lifetime technical support
3)Spare parts & consumables(tagrets, pump oil) offering
