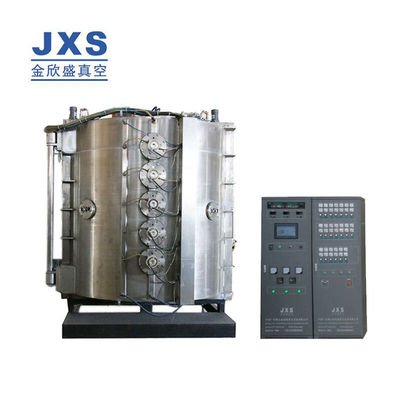

One-Stop Service for PVD Vacuum Coating Machine.
From PVD vacuum coating factory building to consumable items and spare parts offering.
 |
| Place of Origin: | China |
| Brand Name: | JXS |
| Certification: | CE |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | As per configuration |
| Packaging Details: | wooden case, plastic film |
| Delivery Time: | 70 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 sets/year |
| Chamber Material: | Stainless Steel 304 | Control System: | Full Auto, Semi Auto, Manual |
|---|---|---|---|
| Warranty: | 1 Year | After-Sales: | Engineer Available To Service Overseas |
| Structure: | Vertical Front Open Or Vertical Loading | Coating Color: | Gold, Rose Gold, Blue, Gray, Black, Rainbow |
| Voltage: | 380V, 50Hz Or Custom Made | Chamber Size: | Custom Made |
| Pump Group: | Mechanical Pump+Roots Pump+Diffusion/Turbo Pump | Coating Technology: | Multi Arc Or Multi Arc + Magnetron Sputtering |
| High Light: | pvd gold plating machine,high vacuum coating machine |
||
Working principle: Cathodic arc deposition or Arc-PVD is a physical vapor deposition technique in which an electric arc is used to vaporize material from a cathode target. The vaporized material then condenses on a substrate, forming a thin film. The technique can be used to deposit metallic, ceramic, and composite films.

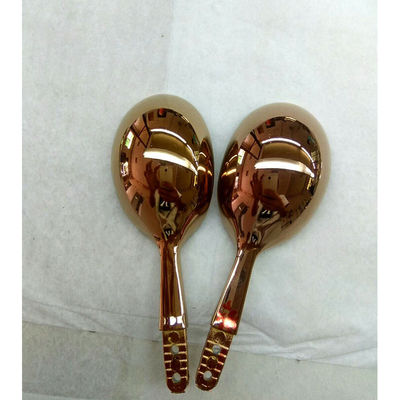

Application: door handle, door hinge, sanitary ware, tableware, cellphone accessory, stainless steel furniture, stainless steel sheet, ceramic tile, glass crystal, bags and suitcases hardware, watch, stainless steel signboard, etc.

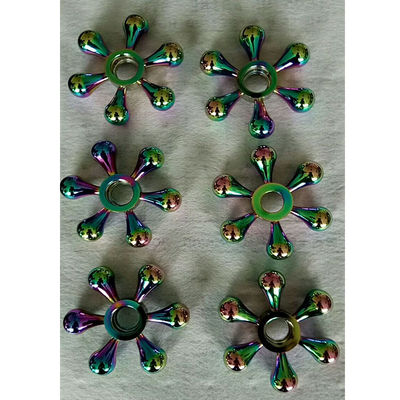

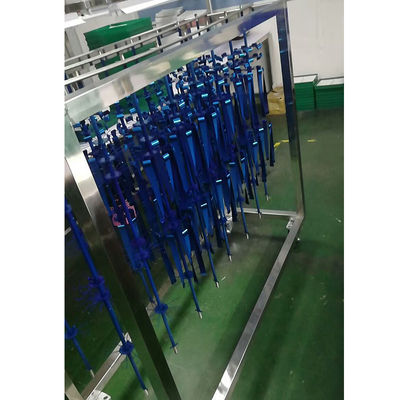

Color: gold, silver, rose gold, blue, gray, black, rainbow.
Film feature: strong adhesion, high hardness, gorgeous decorating effect.
Green process: no harmful gas, no waste water, no waste material.
| Multi-Arc Coating Equipment Model | |||||
| Model | JXS-1010 | JXS-1215 | JXS-1820 | JXS-2336 | JXS-2345 |
| Chamber(mm) | D1000×H1000 | D1200×H1500 | D1800×H2000 | D2300×H3600 | D2300×H4500 |
| Structure | Vertical door structure, pumping system and water cooling system | ||||
| Vacuum System | Diffusion Pump or Molecular Pump + Hold Pump + Rough Pump + Roots Pump | ||||
| Ultimate Pressure | 1.0- 6.0×10-4Pa, Non-loading cooling | ||||
| Temp. | Normal temp- 300°C to 450°C - 600°C, controlled and adjusted(PID temp. control) | ||||
| Gas | Ar, N2,O2, C2H2,etc. | ||||
| Cooling | Water cooling circulation, industrial cooling tower or industrial water chiller(refrigerating machine) or cryogenic system.(customers provide) | ||||
| Controlling | Manual, semi-auto, full auto | ||||
| Air Pressure | 0.5-0.8MPa | ||||
| Water Temp. | ≤25°C | ||||
| Water Pressure | ≥0.2MPa | ||||
| Total Power | 25-65KW | 65-105KW | 85-115KW | 95-145KW | 130-180KW |
| Output Frequency | 380V, 50Hz(Custom made) | ||||
| Occupied Area | 35~50m² | 55~95m² | 75~105m² | 125~175m² | 135~205m² |
| Remark | Customization | ||||
3D Effect
