One-Stop Service for PVD Vacuum Coating Machine.
From PVD vacuum coating factory building to consumable items and spare parts offering.
Place of Origin: | China |
Brand Name: | JXS |
Certification: | CE |
Minimum Order Quantity: | 1 set |
---|---|
Price: | As per configuration |
Packaging Details: | wooden case, plastic film |
Delivery Time: | 70 working days |
Payment Terms: | T/T, L/C |
Supply Ability: | 100 sets/year |
Chamber Material: | Stainless Steel 304 | Control System: | Full Auto, Semi Auto, Manual |
---|---|---|---|
Warranty: | 1 Year | After-Sales: | Engineer Available To Service Overseas |
Structure: | Vertical Front Open Or Vertical Loading | Coating Color: | Gold, Rose Gold, Blue, Gray, Black, Rainbow |
Voltage: | 380V, 50Hz Or Custom Made | Chamber Size: | Custom Made |
Pump Group: | Mechanical Pump+Roots Pump+Diffusion/Turbo Pump | Coating Technology: | Multi Arc Or Multi Arc + Magnetron Sputtering |
High Light: | decorative vacuum coating machine,high vacuum coating machine |
Working principle: Cathodic arc deposition or Arc-PVD is a physical vapor deposition technique in which an electric arc is used to vaporize material from a cathode target. The vaporized material then condenses on a substrate, forming a thin film. The technique can be used to deposit metallic, ceramic, and composite films.

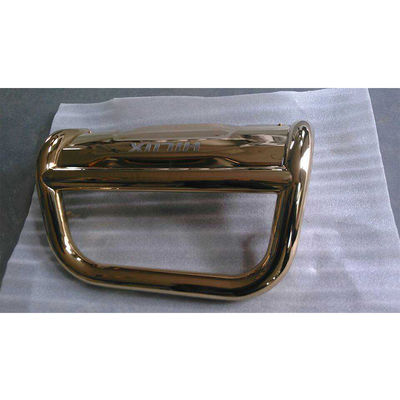

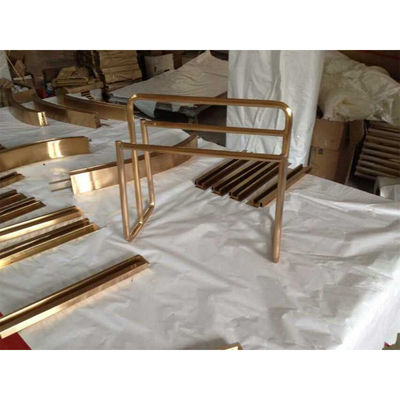

Application: door handle, door hinge, sanitary ware, tableware, cellphone accessory, stainless steel furniture, stainless steel sheet, ceramic tile, glass crystal, bags and suitcases hardware, watch, stainless steel signboard, etc.
Color: gold, silver, rose gold, blue, gray, black, rainbow.
Film feature: strong adhesion, high hardness, gorgeous decorating effect.
Green process: no harmful gas, no waste water, no waste material.

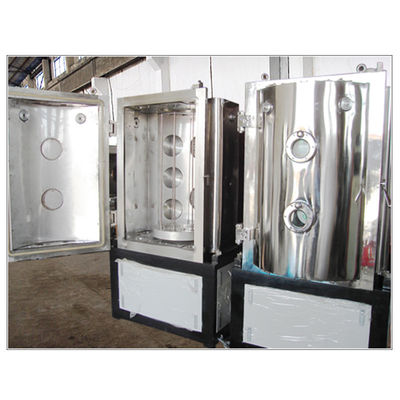

Multi-Arc Coating Equipment Model | |||||
Model | JXS-1010 | JXS-1215 | JXS-1820 | JXS-2336 | JXS-2345 |
Chamber(mm) | D1000×H1000 | D1200×H1500 | D1800×H2000 | D2300×H3600 | D2300×H4500 |
Structure | Vertical door structure, pumping system and water cooling system | ||||
Vacuum System | Diffusion Pump or Molecular Pump + Hold Pump + Rough Pump + Roots Pump | ||||
Ultimate Pressure | 1.0- 6.0×10-4Pa, Non-loading cooling | ||||
Temp. | Normal temp- 300°C to 450°C - 600°C, controlled and adjusted(PID temp. control) | ||||
Gas | Ar, N2,O2, C2H2,etc. | ||||
Cooling | Water cooling circulation, industrial cooling tower or industrial water chiller(refrigerating machine) or cryogenic system.(customers provide) | ||||
Controlling | Manual, semi-auto, full auto | ||||
Air Pressure | 0.5-0.8MPa | ||||
Water Temp. | ≤25°C | ||||
Water Pressure | ≥0.2MPa | ||||
Total Power | 25-65KW | 65-105KW | 85-115KW | 95-145KW | 130-180KW |
Output Frequency | 380V, 50Hz(Custom made) | ||||
Occupied Area | 35~50m² | 55~95m² | 75~105m² | 125~175m² | 135~205m² |
Remark | Customization |
3D Effect
