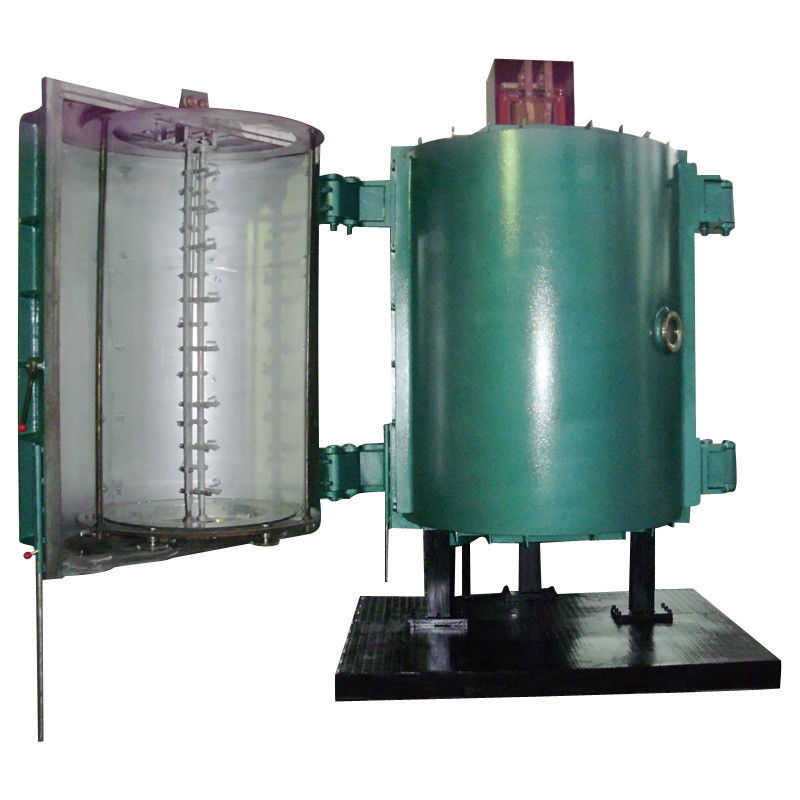

Bright Metallic Gloss High Efficiency Evaporation Vacuum Coating Machine For ABS PP PC Products

Product Details:

Place of Origin:	China
Brand Name:	JXS
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	As per configuration
Packaging Details:	wooden case, plastic film
Delivery Time:	70 working days
Payment Terms:	L/C, T/T
Supply Ability:	100 sets/year

Contact Now

Detailed Product Description

Chamber Material:	Stainless Steel 304 Or Carbon Steel	Control System:	Full Auto, Semi Auto, Manual
Warranty:	1 Year	After-Sales:	Engineer Available To Service Overseas
Structure:	Vertical Front Open	Coating Color:	Silver, Gold, Red, Green, Pink, Rose Gold
Voltage:	380V, 50Hz Or Custom Made	Chamber Size:	Custom Made
Pump Group:	Mechanical Pump+Roots Pump+Diffusion/Turbo Pump	Coating Technology:	Vacuum Thermal Evaporation
Highlight:	plastic vacuum coating machine , decorative vacuum coating machine

Working principle: evaporation is a common method of thin-film deposition. The source material is evaporated in a vacuum. The vacuum allows vapor particles to travel directly to the target object (substrate), where they condense back to a solid state. Evaporation is used in microfabrication, and to make macro-scale products such as metallized plastic film.

Material to be coated: ABS, BMC, PC, PP, etc.

Procedure: Clean Coated Material - Spray Base Coat, Then Dry - Bombardment Cleaning(Machine) - Aluminum Coating(Machine) - Spray Finishing Coat, Then Dry

Each cycle time: about 8 minutes.

Feature: metallic gloss, different color options, fast deposition rate.
