One-Stop Service for PVD Vacuum Coating Machine.
From PVD vacuum coating factory building to consumable items and spare parts offering.

|
| Place of Origin: | China |
| Brand Name: | JXS |
| Certification: | CE |
| Model Number: | JXS-2200 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | As per configuration |
| Packaging Details: | wooden case, plastic film |
| Delivery Time: | 70 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 sets/year |
| Chamber Material: | Stainless Steel 304 | Control System: | Full Auto, Semi Auto, Manual |
|---|---|---|---|
| Warranty: | 1 Year | After-Sales: | Engineer Available To Service Overseas |
| Structure: | Vertical Front Open Or Vertical Loading | Coating Color: | Gold, Rose Gold, Blue, Gray, Black, Rainbow |
| Voltage: | 380V, 50Hz Or Custom Made | Chamber Size: | Custom Made |
| Pump Group: | Mechanical Pump+Roots Pump+Diffusion/Turbo Pump | Coating Technology: | Multi Arc Or Multi Arc + Magnetron Sputtering |
| High Light: | ion plating machine,titanium coating machine |
||
Working principle: Cathodic arc deposition or Arc-PVD is a physical vapor deposition technique in which an electric arc is used to vaporize material from a cathode target. The vaporized material then condenses on a substrate, forming a thin film. The technique can be used to deposit metallic, ceramic, and composite films.

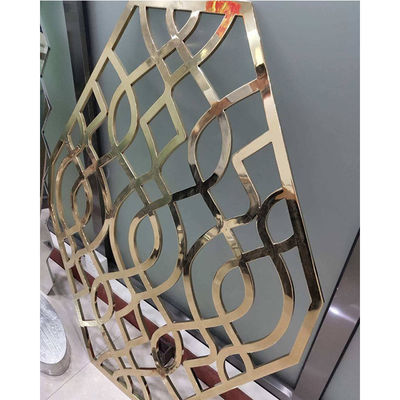

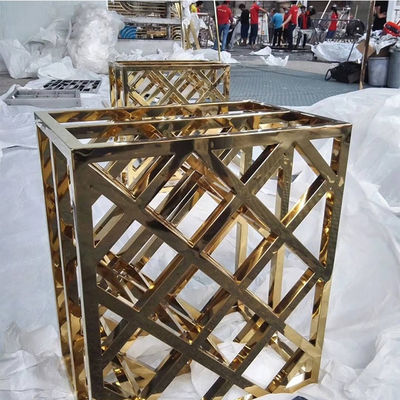

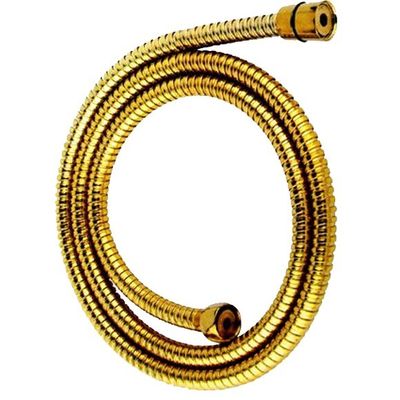

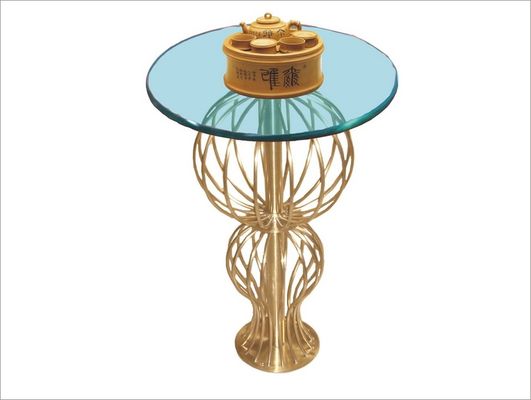

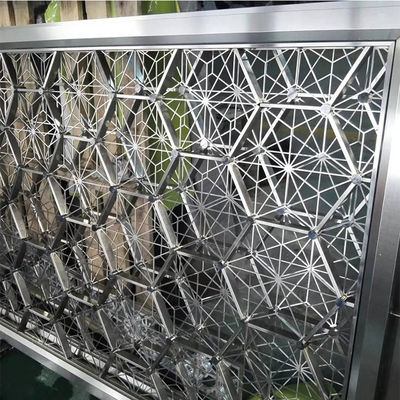

Application: door handle, door hinge, sanitary ware, tableware, cellphone accessory, stainless steel furniture, stainless steel sheet, ceramic tile, glass crystal, bags and suitcases hardware, watch, stainless steel signboard, etc.
Color: gold, silver, rose gold, blue, gray, black, rainbow.
Film feature: strong adhesion, high hardness, gorgeous decorating effect.
Green process: no harmful gas, no waste water, no waste material.
| Multi-Arc Coating Equipment Model | |||||
| Model | JXS-1010 | JXS-1215 | JXS-1820 | JXS-2336 | JXS-2345 |
| Chamber(mm) | D1000×H1000 | D1200×H1500 | D1800×H2000 | D2300×H3600 | D2300×H4500 |
| Structure | Vertical door structure, pumping system and water cooling system | ||||
| Vacuum System | Diffusion Pump or Molecular Pump + Hold Pump + Rough Pump + Roots Pump | ||||
| Ultimate Pressure | 1.0- 6.0×10-4Pa, Non-loading cooling | ||||
| Temp. | Normal temp- 300°C to 450°C - 600°C, controlled and adjusted(PID temp. control) | ||||
| Gas | Ar, N2,O2, C2H2,etc. | ||||
| Cooling | Water cooling circulation, industrial cooling tower or industrial water chiller(refrigerating machine) or cryogenic system.(customers provide) | ||||
| Controlling | Manual, semi-auto, full auto | ||||
| Air Pressure | 0.5-0.8MPa | ||||
| Water Temp. | ≤25°C | ||||
| Water Pressure | ≥0.2MPa | ||||
| Total Power | 25-65KW | 65-105KW | 85-115KW | 95-145KW | 130-180KW |
| Output Frequency | 380V, 50Hz(Custom made) | ||||
| Occupied Area | 35~50m² | 55~95m² | 75~105m² | 125~175m² | 135~205m² |
| Remark | Customization | ||||

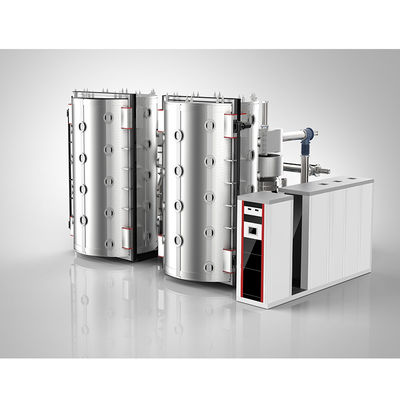

3D Effect
PVD Coating Film Advantages
I)Strong Adhesion Film For Longer Using Life
II)Decoration For Higher Selling Value
III)Decorative Coating Colors For Better Viewing Feeling
Why choose JXS Vacuum?
I)Custom Made PVD Coating Machine
II)1 Year Warranty
III)7 Days Free Installation & Training
IV)On Line Or On-The-Spot After-Sales Service
V)Offer PVD Coating Machine Spare Part & Consumable
Packing and Shipping
FAQ
.
Q1: How about your company?
A1: We are a leading manufacturer and provider of total integrated supply chain solutions for vacuum coating machine.
Q2: How about the quality control about our products?
A2: We have the ISO9001 QMS-Quality Management System.
Q3: Do you provide after-sales service?
A3: After-sales problems shall be solved on line within 48 hours.
Long-term product solution and remote technical support is provided.
Q4: What about the payment terms?
A4: T/T and it is also flexible according to different types of machine.
Q5: About the package?
A5: Nude packing or wooden case carton container.
Q6: Do you provide the second-hand machine?
A6: Yes. We also provide second-hand machine, you can provide your requirements to our salesman.
Q7: What is lead time of PVD electro colouring system?
A7: About 60 working days.
A8: Do you teach all PVD colouring details?
A8: Yes, we will teach you in your factory.
A9: Do you have quality guarantee for PVD electro colouring system?
A9: 1 year guarantee and lifetime technical support.
A10: If we buy the machine how can we install the machine in my factory and you can't leave the country due to the COVID-19 ?
A10: We can send you the Equipment Installation Guide and instruct you to install by online video.
