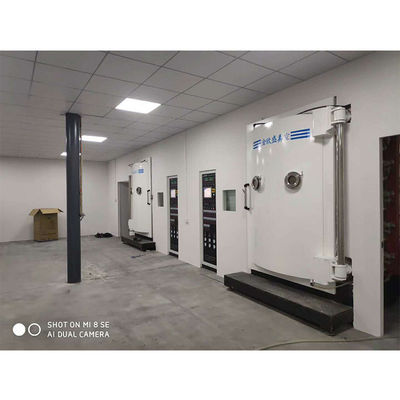

High Output Stainless Steel Tableware Cutlery Flatware Golden Rose Gold Black Rainbow Color PVD Vacuum Coating Machine

Product Details:

Place of Origin:	China
Brand Name:	JXS
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	As per configuration
Packaging Details:	wooden case, plastic film
Delivery Time:	70 working days
Payment Terms:	L/C, T/T
Supply Ability:	100 sets/year

Contact Now

Detailed Product Description

Chamber Material:	Stainless Steel 304	Control System:	Full Auto, Semi Auto, Manual
Warranty:	1 Year	After-Sales:	Engineer Available To Service Overseas
Structure:	Vertical Front Open Or Vertical Loading	Coating Color:	Gold, Rose Gold, Blue, Gray, Black, Rainbow
Voltage:	380V, 50Hz Or Custom Made	Chamber Size:	Custom Made
Pump Group:	Mechanical Pump+Roots Pump+Diffusion/Turbo Pump	Coating Technology:	Multi Arc Or Multi Arc + Magnetron Sputtering
Highlight:	pvd gold plating machine , decorative vacuum coating machine

Working principle: Cathodic arc deposition or Arc-PVD is a physical vapor deposition technique in which an electric arc is used to vaporize material from a cathode target. The vaporized material then condenses on a substrate, forming a thin film. The technique can be used to deposit metallic, ceramic, and composite films.

High Output Stainless Steel Tableware Cutlery Flatware Golden Rose Gold Black Rainbow Color PVD Vacuum Coating Machine 0

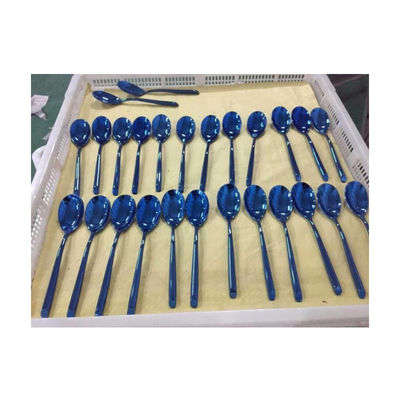

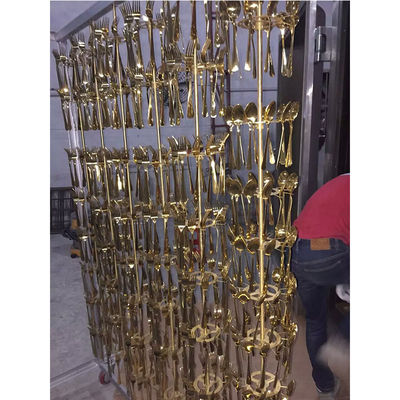

Application: door handle, door hinge, sanitary ware, tableware, cellphone accessory, stainless steel furniture, stainless steel sheet, ceramic tile, glass crystal, bags and suitcases hardware, watch, stainless steel signboard, etc.

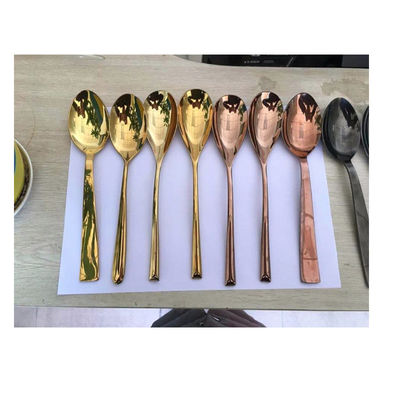

Color: gold, silver, rose gold, blue, gray, black, rainbow.

Film feature: strong adhesion, high hardness, gorgeous decorating effect.

Green process: no harmful gas, no waste water, no waste material.

Multi-Arc Coating Equipment Model
Model	JXS-1010	JXS-1215	JXS-1820	JXS-2336	JXS-2345
Chamber(mm)	D1000×H1000	D1200×H1500	D1800×H2000	D2300×H3600	D2300×H4500
Structure	Vertical door structure, pumping system and water cooling system
Vacuum System	Diffusion Pump or Molecular Pump + Hold Pump + Rough Pump + Roots Pump
Ultimate Pressure	1.0- 6.0×10-4Pa, Non-loading cooling
Temp.	Normal temp- 300°C to 450°C - 600°C, controlled and adjusted(PID temp. control)
Gas	Ar, N2,O2, C2H2,etc.
Cooling	Water cooling circulation, industrial cooling tower or industrial water chiller(refrigerating machine) or cryogenic system.(customers provide)
Controlling	Manual, semi-auto, full auto
Air Pressure	0.5-0.8MPa
Water Temp.	≤25°C
Water Pressure	≥0.2MPa
Total Power	25-65KW	65-105KW	85-115KW	95-145KW	130-180KW
Output Frequency	380V, 50Hz(Custom made)
Occupied Area	35~50m²	55~95m²	75~105m²	125~175m²	135~205m²
Remark	Customization

3D Effect

High Output Stainless Steel Tableware Cutlery Flatware Golden Rose Gold Black Rainbow Color PVD Vacuum Coating Machine 1
