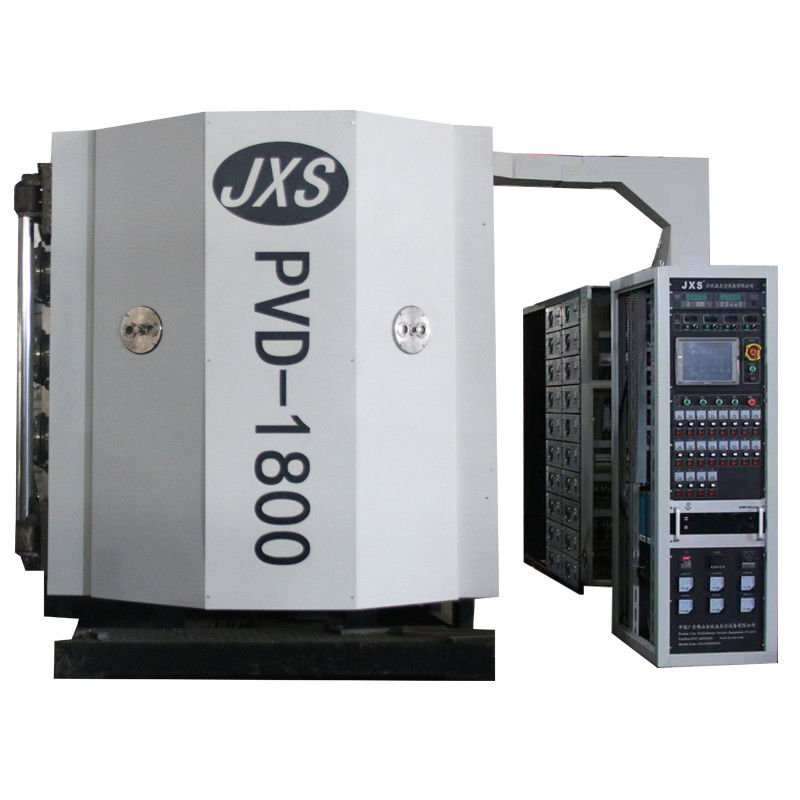

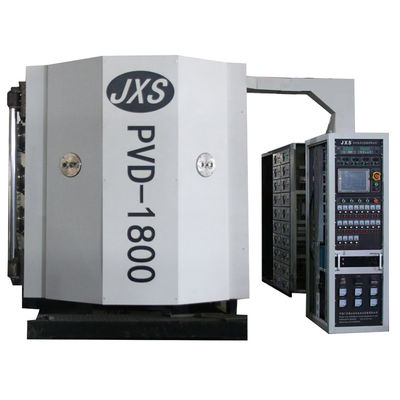

Low Temperature Ion Plating Machine For Ceramic Craftware Custom Champagne Gold Rose Gold Decorative Coating Unit

Low Temperature Ion Plating Machine For Ceramic Craftware Custom Champagne Gold Rose Gold Decorative Coating Unit

Low Temperature Ion Plating Machine For Ceramic Craftware Custom Champagne Gold Rose Gold Decorative Coating Unit
Low Temperature Ion Plating Machine For Ceramic Craftware Custom Champagne Gold Rose Gold Decorative Coating Unit
Low Temperature Ion Plating Machine For Ceramic Craftware Custom Champagne Gold Rose Gold Decorative Coating Unit
Product Details:
Place of Origin: China
Brand Name: JXS
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: As per configuration
Packaging Details: wooden case, plastic film
Delivery Time: 70 working days
Payment Terms: L/C,T/T
Supply Ability: 100 sets/year
Contact Now
Detailed Product Description
Chamber Material: Stainless Steel 304 Control System: Full Auto, Semi Auto, Manual
Warranty: 1 Year After-Sales: Engineer Available To Service Overseas
Structure: Vertical Front Open Or Vertical Loading Coating Color: Gold, Rose Gold, Blue, Gray, Black, Rainbow
Voltage: 380V, 50Hz Or Custom Made Chamber Size: Custom Made
Pump Group: Mechanical Pump+Roots Pump+Diffusion/Turbo Pump Coating Technology: Multi Arc Or Multi Arc + Magnetron Sputtering
Highlight:

low temperature ion plating machine

,

ceramic craftware coating unit

,

custom champagne gold decorative coating

Low Temperature Ion Plating Machine For Ceramic Craftware Custom Champagne Gold Rose Gold Decorative Coating Unit


Description:

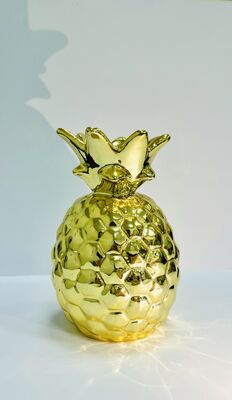

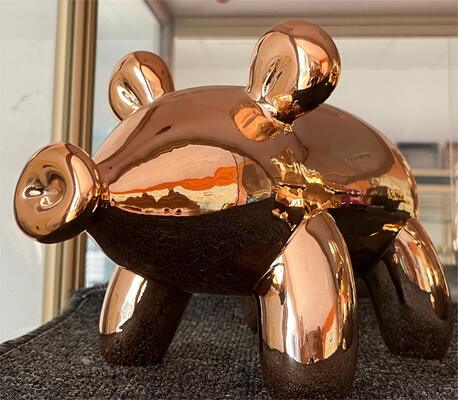

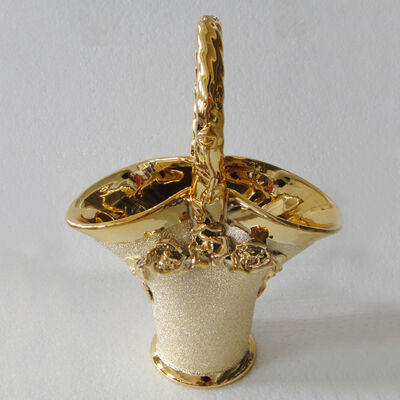

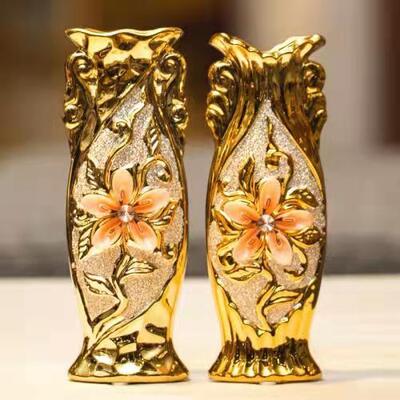

    This low temperature ion plating machine is specially customized for various ceramic craftware. It supports custom decorative finishes including champagne gold and rose gold without cracking ceramic substrates. The coated film features strong adhesion, uniform luster and excellent wear resistance for high-end ceramic ornaments.



Working principle: Cathodic arc deposition or Arc-PVD is a physical vapor deposition technique in which an electric arc is used to vaporize material from a cathode target. The vaporized material then condenses on a substrate, forming a thin film. The technique can be used to deposit metallic, ceramic, and composite films.

Low Temperature Ion Plating Machine For Ceramic Craftware Custom Champagne Gold Rose Gold Decorative Coating Unit 0


Application: door handle, door hinge, sanitary ware, tableware, cellphone accessory, stainless steel furniture, stainless steel sheet, ceramic tile, glass crystal, bags and suitcases hardware, watch, stainless steel signboard, etc.


Color: gold, silver, rose gold, blue, gray, black, rainbow.


Film feature: strong adhesion, high hardness, gorgeous decorating effect.


Green process: no harmful gas, no waste water, no waste material.


Multi-Arc Coating Equipment Model
Model JXS-1010 JXS-1215 JXS-1820 JXS-2336 JXS-2345
Chamber(mm) D1000×H1000 D1200×H1500 D1800×H2000 D2300×H3600 D2300×H4500
Structure Vertical door structure, pumping system and water cooling system
Vacuum System Diffusion Pump or Molecular Pump + Hold Pump + Rough Pump + Roots Pump
Ultimate Pressure 1.0- 6.0×10-4Pa, Non-loading cooling
Temp. Normal temp- 300°C to 450°C - 600°C, controlled and adjusted(PID temp. control)
Gas Ar, N2,O2, C2H2,etc.
Cooling Water cooling circulation, industrial cooling tower or industrial water chiller(refrigerating machine) or cryogenic system.(customers provide)
Controlling Manual, semi-auto, full auto
Air Pressure 0.5-0.8MPa
Water Temp. ≤25°C
Water Pressure ≥0.2MPa
Total Power 25-65KW 65-105KW 85-115KW 95-145KW 130-180KW
Output Frequency 380V, 50Hz(Custom made)
Occupied Area 35~50m² 55~95m² 75~105m² 125~175m² 135~205m²
Remark Customization


3D Effect

Low Temperature Ion Plating Machine For Ceramic Craftware Custom Champagne Gold Rose Gold Decorative Coating Unit 1
