Low Temperature Ion Plating Machine For Ceramic Craftware Custom Champagne Gold Rose Gold Decorative Coating Unit

Low Temperature Ion Plating Machine For Ceramic Craftware Custom Champagne Gold Rose Gold Decorative Coating Unit

Brand Name:	JXS
MOQ:	1 set
Price:	As per configuration
Payment Terms:	L/C,T/T
Supply Ability:	100 sets/year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Chamber Material:

Stainless Steel 304

Control System:

Full Auto, Semi Auto, Manual

Warranty:

1 Year

After-Sales:

Engineer Available To Service Overseas

Structure:

Vertical Front Open Or Vertical Loading

Coating Color:

Gold, Rose Gold, Blue, Gray, Black, Rainbow

Voltage:

380V, 50Hz Or Custom Made

Chamber Size:

Custom Made

Pump Group:

Mechanical Pump+Roots Pump+Diffusion/Turbo Pump

Coating Technology:

Multi Arc Or Multi Arc + Magnetron Sputtering

Packaging Details:

wooden case, plastic film

Highlight:

low temperature ion plating machine

ceramic craftware coating unit

custom champagne gold decorative coating

Product Description

Low Temperature Ion Plating Machine For Ceramic Craftware Custom Champagne Gold Rose Gold Decorative Coating Unit

Description:

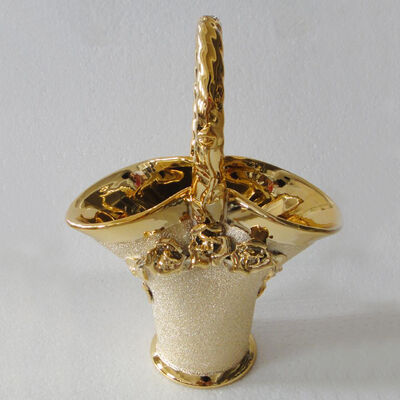

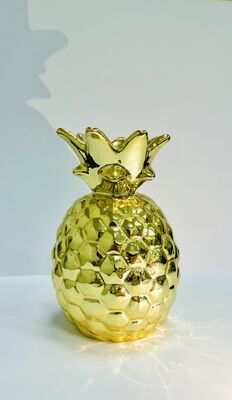

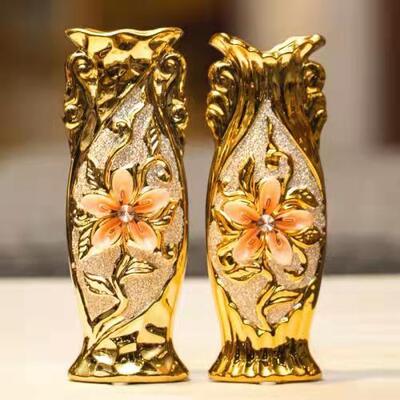

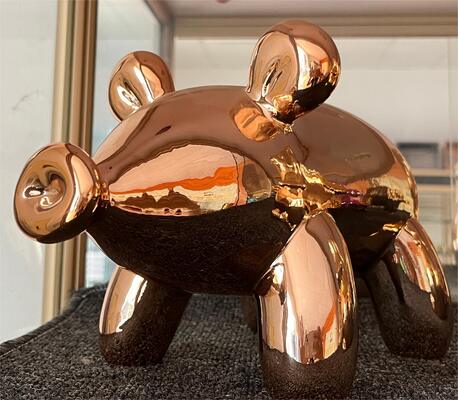

This low temperature ion plating machine is specially customized for various ceramic craftware. It supports custom decorative finishes including champagne gold and rose gold without cracking ceramic substrates. The coated film features strong adhesion, uniform luster and excellent wear resistance for high-end ceramic ornaments.

Working principle: Cathodic arc deposition or Arc-PVD is a physical vapor deposition technique in which an electric arc is used to vaporize material from a cathode target. The vaporized material then condenses on a substrate, forming a thin film. The technique can be used to deposit metallic, ceramic, and composite films.

Low Temperature Ion Plating Machine For Ceramic Craftware Custom Champagne Gold Rose Gold Decorative Coating Unit

Application: door handle, door hinge, sanitary ware, tableware, cellphone accessory, stainless steel furniture, stainless steel sheet, ceramic tile, glass crystal, bags and suitcases hardware, watch, stainless steel signboard, etc.

Color: gold, silver, rose gold, blue, gray, black, rainbow.

Film feature: strong adhesion, high hardness, gorgeous decorating effect.

Green process: no harmful gas, no waste water, no waste material.

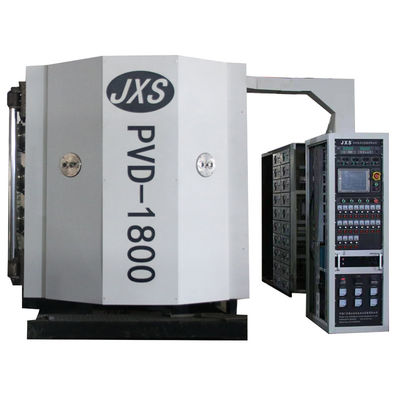

Multi-Arc Coating Equipment Model
Model	JXS-1010	JXS-1215	JXS-1820	JXS-2336	JXS-2345
Chamber(mm)	D1000×H1000	D1200×H1500	D1800×H2000	D2300×H3600	D2300×H4500
Structure	Vertical door structure, pumping system and water cooling system
Vacuum System	Diffusion Pump or Molecular Pump + Hold Pump + Rough Pump + Roots Pump
Ultimate Pressure	1.0- 6.0×10-4Pa, Non-loading cooling
Temp.	Normal temp- 300°C to 450°C - 600°C, controlled and adjusted(PID temp. control)
Gas	Ar, N2,O2, C2H2,etc.
Cooling	Water cooling circulation, industrial cooling tower or industrial water chiller(refrigerating machine) or cryogenic system.(customers provide)
Controlling	Manual, semi-auto, full auto
Air Pressure	0.5-0.8MPa
Water Temp.	≤25°C
Water Pressure	≥0.2MPa
Total Power	25-65KW	65-105KW	85-115KW	95-145KW	130-180KW
Output Frequency	380V, 50Hz(Custom made)
Occupied Area	35~50m²	55~95m²	75~105m²	125~175m²	135~205m²
Remark	Customization

3D Effect
