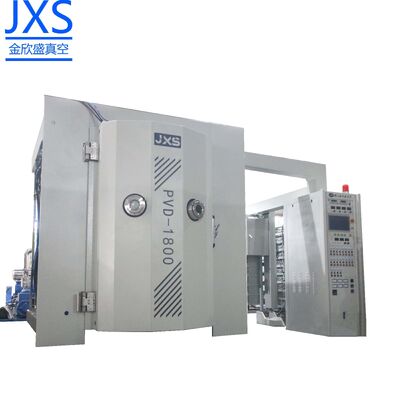

Foshan Manufacturer Custom-Sized Glass And Crystal Multi-Arc Ion PVD Vacuum Coating Equipment

Foshan Manufacturer Custom-Sized Glass And Crystal Multi-Arc Ion PVD Vacuum Coating Equipment

Brand Name:	JXS
MOQ:	1 set
Price:	As per configuration
Payment Terms:	L/C,T/T
Supply Ability:	100 sets/year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Chamber Material:

Stainless Steel 304

Control System:

Full Auto, Semi Auto, Manual

Warranty:

1 Year

After-Sales:

Engineer Available To Service Overseas

Structure:

Vertical Front Open Or Vertical Loading

Coating Color:

Gold, Rose Gold, Blue, Gray, Black, Rainbow

Voltage:

380V, 50Hz Or Custom Made

Chamber Size:

Custom Made

Pump Group:

Mechanical Pump+Roots Pump+Diffusion/Turbo Pump

Coating Technology:

Multi Arc Or Multi Arc + Magnetron Sputtering

Packaging Details:

wooden case, plastic film

Highlight:

glass coating machine

anti reflective coating machine

Product Description

Foshan Manufacturer Custom-Sized Glass And Crystal Multi-Arc Ion PVD Vacuum Coating Equipment

Working principle: Cathodic arc deposition or Arc-PVD is a physical vapor deposition technique in which an electric arc is used to vaporize material from a cathode target. The vaporized material then condenses on a substrate, forming a thin film. The technique can be used to deposit metallic, ceramic, and composite films.

Foshan Manufacturer Custom-Sized Glass And Crystal Multi-Arc Ion PVD Vacuum Coating Equipment

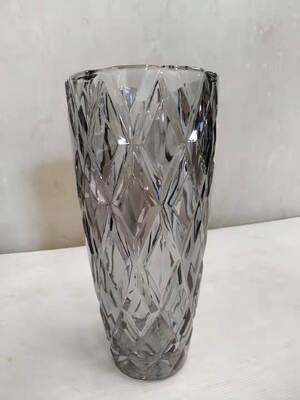

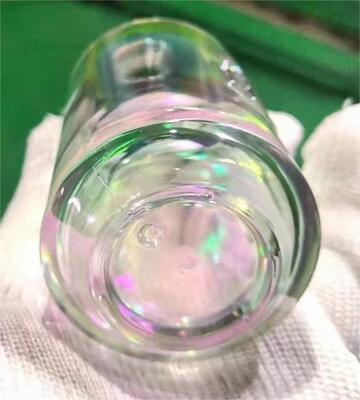

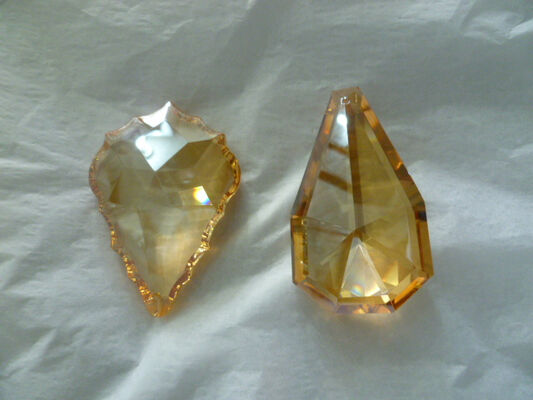

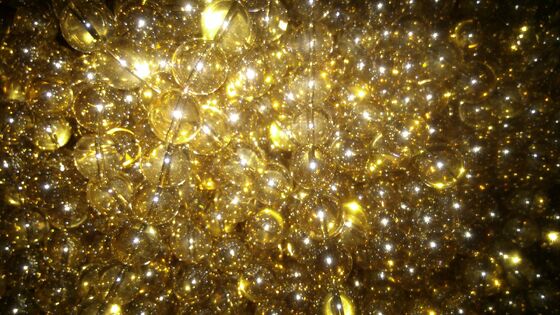

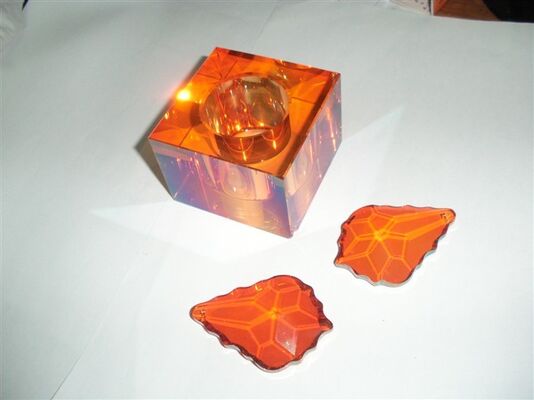

Application: door handle, door hinge, sanitary ware, tableware, cellphone accessory, stainless steel furniture, stainless steel sheet, ceramic tile, glass crystal, bags and suitcases hardware, watch, stainless steel signboard, etc.

Color: gold, silver, rose gold, blue, gray, black, rainbow.

Film feature: strong adhesion, high hardness, gorgeous decorating effect.

Green process: no harmful gas, no waste water, no waste material.

Multi-Arc Coating Equipment Model
Model	JXS-1010	JXS-1215	JXS-1820	JXS-2336	JXS-2345
Chamber(mm)	D1000×H1000	D1200×H1500	D1800×H2000	D2300×H3600	D2300×H4500
Structure	Vertical door structure, pumping system and water cooling system
Vacuum System	Diffusion Pump or Molecular Pump + Hold Pump + Rough Pump + Roots Pump
Ultimate Pressure	1.0- 6.0×10-4Pa, Non-loading cooling
Temp.	Normal temp- 300°C to 450°C - 600°C, controlled and adjusted(PID temp. control)
Gas	Ar, N2,O2, C2H2,etc.
Cooling	Water cooling circulation, industrial cooling tower or industrial water chiller(refrigerating machine) or cryogenic system.(customers provide)
Controlling	Manual, semi-auto, full auto
Air Pressure	0.5-0.8MPa
Water Temp.	≤25°C
Water Pressure	≥0.2MPa
Total Power	25-65KW	65-105KW	85-115KW	95-145KW	130-180KW
Output Frequency	380V, 50Hz(Custom made)
Occupied Area	35~50m²	55~95m²	75~105m²	125~175m²	135~205m²
Remark	Customization

3D Effect

Foshan Manufacturer Custom-Sized Glass And Crystal Multi-Arc Ion PVD Vacuum Coating Equipment
