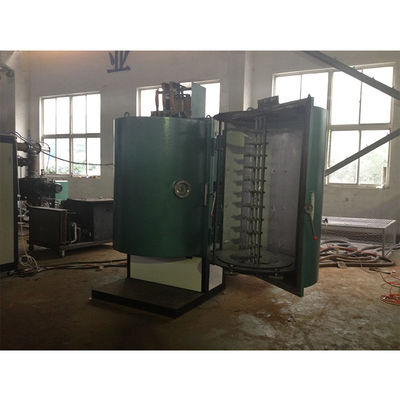

Multi Colors High Friction Resisting Plastic Caps Evaporation Vacuum Metalizing Machine

Brand Name:	JXS
MOQ:	1 set
Price:	As per configuration
Payment Terms:	L/C, T/T
Supply Ability:	100 sets/year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Chamber Material:

Stainless Steel 304 Or Carbon Steel

Control System:

Full Auto, Semi Auto, Manual

Warranty:

1 Year

After-Sales:

Engineer Available To Service Overseas

Structure:

Vertical Front Open

Coating Color:

Silver, Gold, Red, Green, Pink, Rose Gold

Voltage:

380V, 50Hz Or Custom Made

Chamber Size:

Custom Made

Pump Group:

Mechanical Pump+Roots Pump+Diffusion/Turbo Pump

Coating Technology:

Vacuum Thermal Evaporation

Packaging Details:

wooden case, plastic film

Highlight:

thermal evaporation coating unit

plastic vacuum coating machine

Product Description

Working principle: evaporation is a common method of thin-film deposition. The source material is evaporated in a vacuum. The vacuum allows vapor particles to travel directly to the target object (substrate), where they condense back to a solid state. Evaporation is used in microfabrication, and to make macro-scale products such as metallized plastic film.

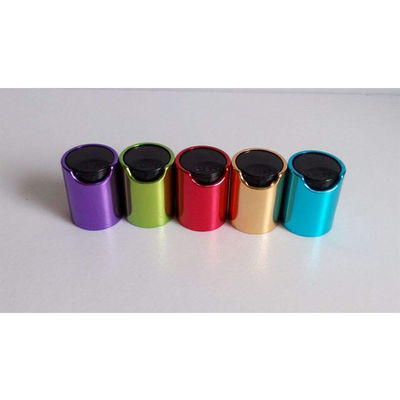

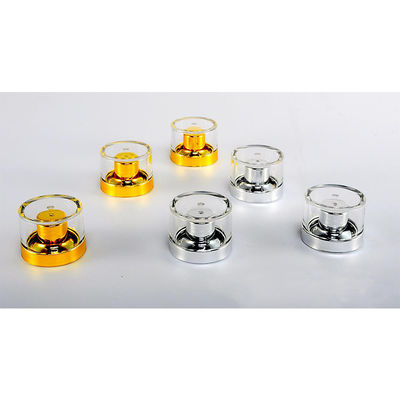

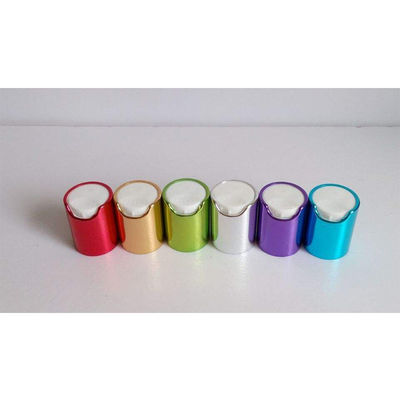

Material to be coated: ABS, BMC, PC, PP, etc.

Procedure: Clean Coated Material - Spray Base Coat, Then Dry - Bombardment Cleaning(Machine) - Aluminum Coating(Machine) - Spray Finishing Coat, Then Dry

Each cycle time: about 8 minutes.

Feature: metallic gloss, different color options, fast deposition rate.
