One-Stop Service for PVD Vacuum Coating Machine.
From PVD vacuum coating factory building to consumable items and spare parts offering.
 |
| Place of Origin: | China |
| Brand Name: | JXS |
| Certification: | CE |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden Case, Plastic Film |
| Delivery Time: | 60 Working Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 Sets/Year |
| Structure: | Vertical Single Front Open Door | Vacuum Chamber Inner Size: | Custom Made |
|---|---|---|---|
| Pump Group: | Rotary Vane Pump+Roots Pump+Diffusion Pump | Pump Brand: | China |
| Cart: | 1 Set | Warranty: | 1 Year |
| Coating: | Vacuum Coating | Install Location: | Customer Location |
| High Light: | Mosaic Cathodic Arc Deposition,Vacuum Cathodic Arc Deposition,Mosaic Vacuum Coating Equipment |
||
Mosaic Cathodic Arc Deposition Vacuum Coating System
Main parts of cathodic arc deposition system are vacuum chamber, vacuum pump and electrical cabinet. Vacuum chamber material is stainless steel and inner size can be custom made. Vacuum pump combination is rotary vane pump+roots pump+diffusion pump. Full auto touch screen control system is for convenient operation.
Other Configuration
| Arc Target Size | Diameter100mm x Thickness40mm |
| Arc Power Supply | 200A |
| Heating System | 1 Set |
| Rotation Stand | 2 Sets |
| Working Theory | Cathodic Arc(Multi Arc) |
| Warranty Period | 1 Year |

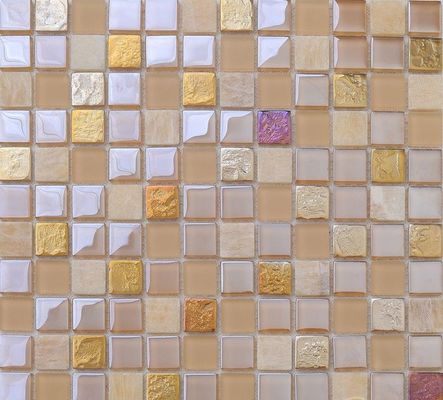

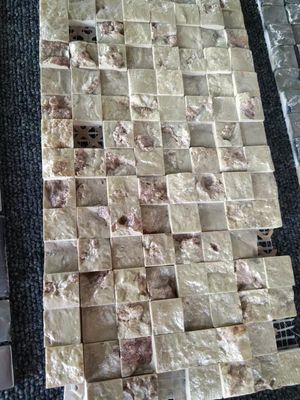

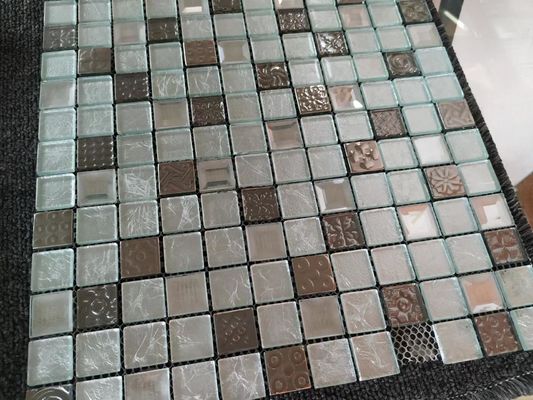

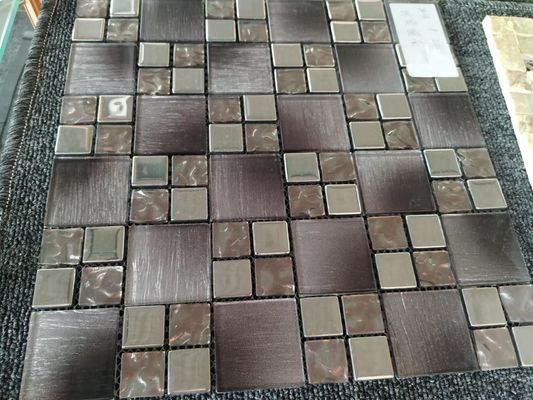

Cathodic Arc Deposition Glass Mosaic
After cathodic arc deposition, glass mosaic will show gold, rose gold, silver, blue, gray, black and rainbow such colors. Above decorative colors will increase selling value of glass mosaic and improve viewing feeling. Strong film adhesion will enlarge glass mosaic using life.
FAQ
What is whole cathodic arc deposition process?
Cleaning, baking, coating, inspecting, packing.
How long time for each deposition cycle?
About 15-30 minutes.
Except cathodic arc deposition system, do we need other accessory equipment?
Yes, oven, air compressor, water tower, water pump.
About the package?
nude packing or wooden case carton container.
What about the payment terms?
T/T and it is also flexible according to the different types of machine.
How about the quality control of our product?
We have the ISO9001 QMS-Quality Management System.
