Multi Arc Ion PVD Plating Equipment for Watch Case and Band

Multi Arc Ion PVD Plating Equipment for Watch Case and Band

Brand Name:	JXS
MOQ:	1 set
Price:	As per configuration
Payment Terms:	T/T,L/C
Supply Ability:	100 sets/year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Chamber Material:

Stainless Steel 304

Control System:

Full Auto, Semi Auto, Manual

Warranty:

1 Year

After-Sales:

Engineer Available To Service Overseas

Structure:

Vertical Front Open Or Vertical Loading

Coating Color:

Gold, Rose Gold, Blue, Gray, Black, Rainbow

Voltage:

380V, 50Hz Or Custom Made

Chamber Size:

Custom Made

Pump Group:

Mechanical Pump+Roots Pump+Diffusion/Turbo Pump

Coating Technology:

Multi Arc Or Multi Arc + Magnetron Sputtering

Packaging Details:

wooden case, plastic film

Highlight:

pvd gold plating machine

decorative vacuum coating machine

Product Description

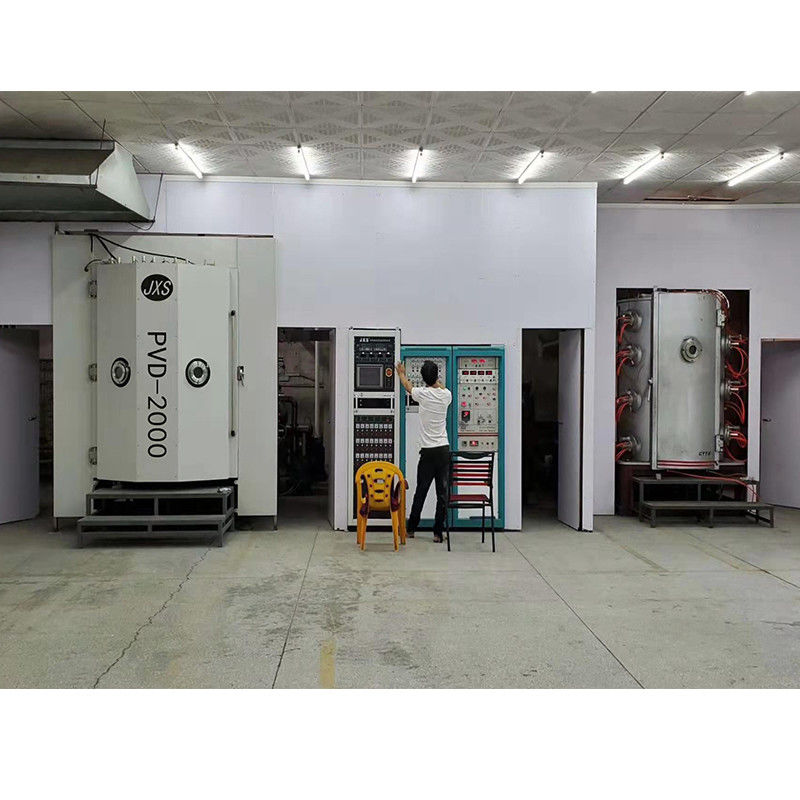

Multi Arc Ion PVD Plating Equipment for Watch Case and Band

Working Principle

Cathodic arc deposition (Arc-PVD) is a physical vapor deposition technique that uses an electric arc to vaporize material from a cathode target. The vaporized material then condenses on a substrate, forming a high-quality thin film. This advanced method is suitable for depositing metallic, ceramic, and composite films.

Applications

Door handles and hinges
Sanitary ware and tableware
Cellphone accessories
Stainless steel furniture and sheets
Ceramic tiles and glass crystal
Bags and suitcases hardware

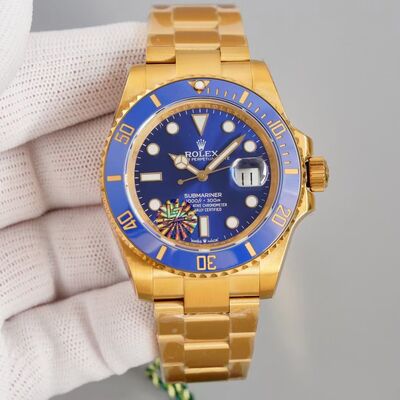

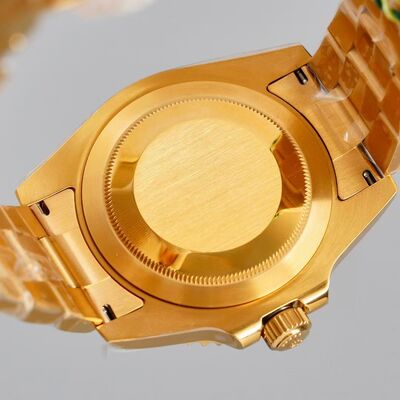

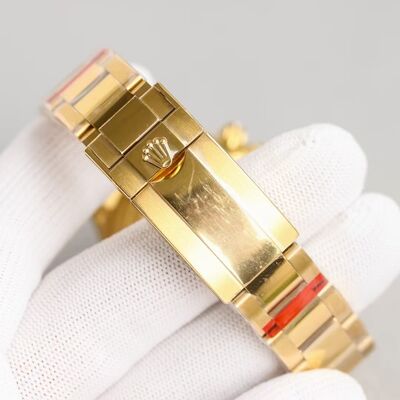

Watches and timepieces
Stainless steel signboards

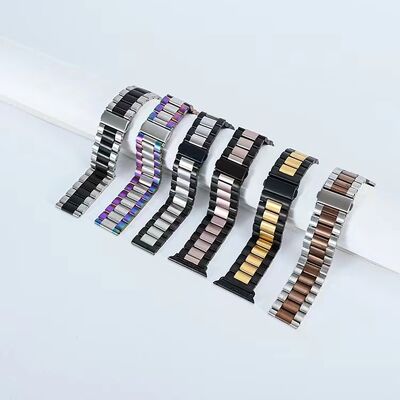

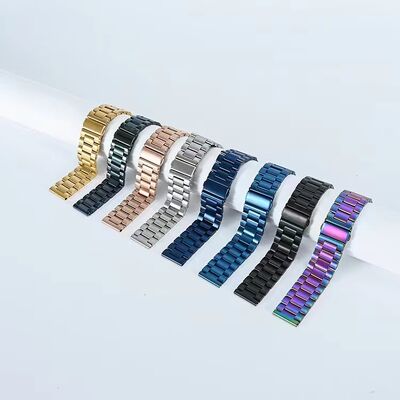

Available Colors

Gold, silver, rose gold, blue, gray, black, rainbow

Film Features

Strong Adhesion: Excellent bonding to substrate materials

High Hardness: Durable and wear-resistant coatings

Gorgeous Decorating Effect: Premium aesthetic finish

Environmental Benefits

Green process: No harmful gas emissions, no wastewater discharge, and no waste material generation.

Multi-Arc Coating Equipment Specifications

Model	JXS-1010	JXS-1215	JXS-1820	JXS-2336	JXS-2345
Chamber (mm)	D1000×H1000	D1200×H1500	D1800×H2000	D2300×H3600	D2300×H4500
Structure	Vertical door structure, pumping system and water cooling system
Vacuum System	Diffusion Pump or Molecular Pump + Hold Pump + Rough Pump + Roots Pump
Ultimate Pressure	1.0-6.0×10⁻⁴Pa, Non-loading cooling
Temperature	Normal temp - 300°C to 450°C - 600°C, controlled and adjusted (PID temp. control)
Gas	Ar, N₂, O₂, C₂H₂, etc.
Cooling	Water cooling circulation, industrial cooling tower or industrial water chiller (refrigerating machine) or cryogenic system (customers provide)
Controlling	Manual, semi-auto, full auto
Air Pressure	0.5-0.8MPa
Water Temp.	≤25°C
Water Pressure	≥0.2MPa
Total Power	25-65KW	65-105KW	85-115KW	95-145KW	130-180KW
Output Frequency	380V, 50Hz (Custom made)
Occupied Area	35-50m²	55-95m²	75-105m²	125-175m²	135-205m²
Remark	Customization available
