Luxury Crystal Lighting PVD Plating Machine Multi Arc Ion Coating

Luxury Crystal Lighting PVD Plating Machine Multi Arc Ion Coating

Luxury Crystal Lighting PVD Plating Machine Multi Arc Ion Coating
Luxury Crystal Lighting PVD Plating Machine Multi Arc Ion Coating
Luxury Crystal Lighting PVD Plating Machine Multi Arc Ion Coating
Product Details:
Place of Origin: China
Brand Name: JXS
Certification: CE
Model Number: JXS-2000
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: As per configuration
Packaging Details: Wooden case, plastic film
Delivery Time: 70 working days
Payment Terms: L/C, T/T
Supply Ability: 100 Sets/Year
Contact Now
Detailed Product Description
After-sales Service Provided: Online Video Technical Support Usage: Crystal
Color: Multiple Technology: Magnetron Sputtering+multi-arc Ion Coating
Local Service Location: Egypt Weight: 4t-8t
Certification: ISO9001
High Light:

Luxury Crystal Lighting PVD Plating Machine

,

Multi Arc Ion PVD Plating Machine

JXS Luxury Crystal Lighting PVD Plating Machine

JXS PVD Coating Machine- multi arc ion gold plating machine

This is PVD technology, under certain conditions of temperature,pressure,and electromagnetic field, the metal target is evaporated and ionized in an electric vacuum chamber by arc discharge or arc-arc discharge, forming a plasma which is reached with gas, and depositing a film on the surface of substrate, then form a strong adhesion titanium film with the substrate; And by controlling the process gas, can get golden,silver,blue,purple,rose gold and other colors.

The machine can be made as the requirement of customer(customized)

JXS MULTI-ARC ION VACUUM COATING MACHINE
Variety of color selection: Gold, Rose gold, Silver, Black,Blue,Green, etc;
In the coating process, there is no harmful gas, no water waste or materials discharged , without any pollution to the environment;
Appearance protection:micron thickness film protects product's appearance, wear resistance of film makes product more durable and newly;
The coating process is suitable for many materials(stainless steel,copper,zinc alloy,titanium,iron,etc.),achieving the light weight and good mechanical properties of hardware.

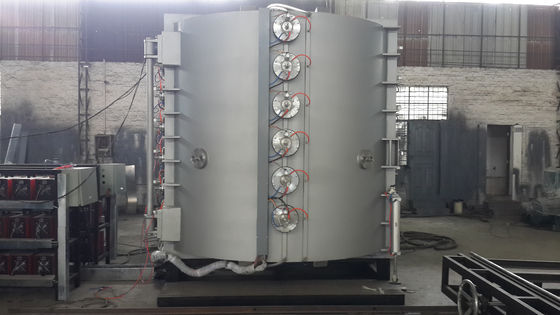

JXS PVD Coating Machine- multi arc ion gold plating machine (as an example)
Product Introduction
Luxury Crystal Lighting PVD Plating Machine Multi Arc Ion Coating 0
Luxury Crystal Lighting PVD Plating Machine Multi Arc Ion Coating 1

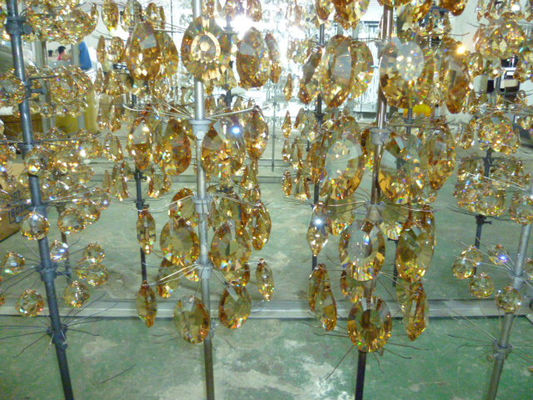

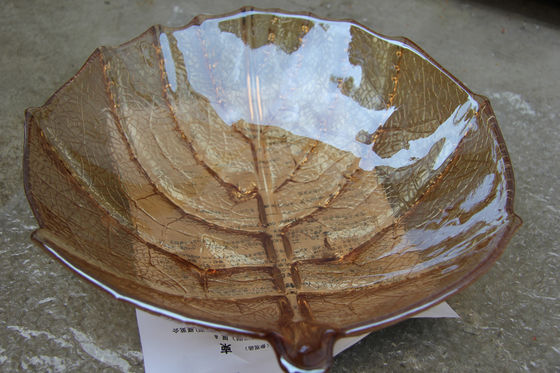

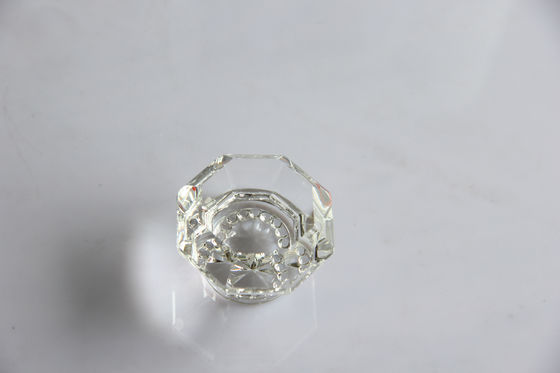

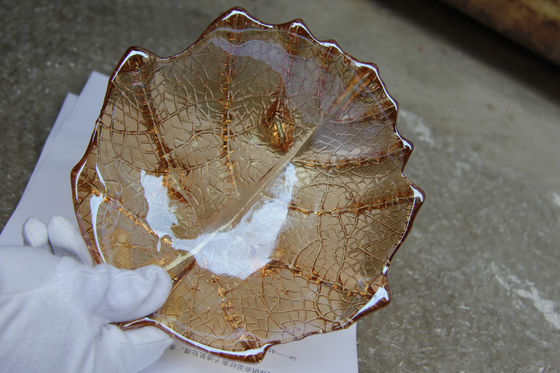

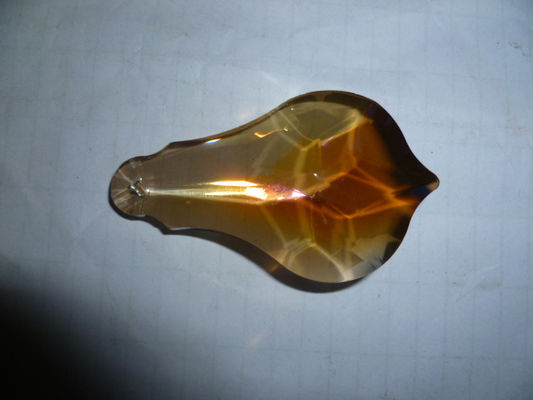

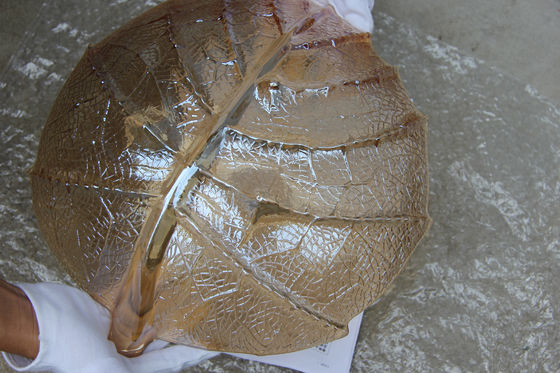

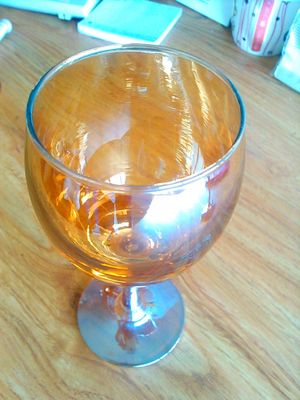

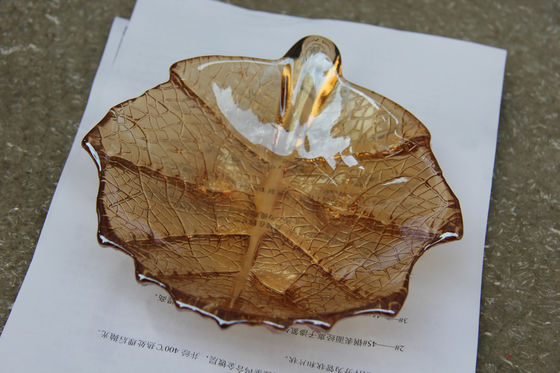

Some sample color made by our machine

(If there is any ideal product or color in the picture, we can go to see the coating process)


Luxury Crystal Lighting PVD Plating Machine Multi Arc Ion Coating 2

Luxury Crystal Lighting PVD Plating Machine Multi Arc Ion Coating 3

Luxury Crystal Lighting PVD Plating Machine Multi Arc Ion Coating 4

Vacuum Coating Machine

Vacuum coating machine adopts advanced PLC control, and is equipped with computer automatic shift vacuum gauge and 3 flow controllers. Invert arc power supply and computer PLD automatic temperature control.
Our equipment is widely used in ceramic,mosaic,hardware,clocks,mobile phones,electronics toys,decorations and other fields.



Multi-Arc Magnetron Coating Equipment Model
Model
JXS-700
JXS-1000
JXS-1200
JXS-1400
JXS-1600
JXS-1800
Chamber(mm)
D700×H1000
D700×H1000
D700×H1000
D700×H1000
D700×H1000
D700×H1000
Structure
Vertical door structure, pumping system and water cooling system
Vacuum System
Sustaining Pump + Mechanical Pump + Roots Pump + Diffusion Pump or Molecule Pump
Measurement
1 set pirani, 1 set cold cathode, 1 set diaphragm gauge
Ultimate Pressure
1.0- 6.0×10-4Pa, Non-loading cooling
Temp.
Normal temp- 300°C to 450°C - 600°C, controlled and adjusted(PID temp. control)
Gas
Ar, N2,O2, C2H2,etc.
Cooling
Water cooling circulation, industrial cooling tower or industrial water chiller(refrigerating machine) or cryogenic system.(customers provide)
Controlling
Manual, semi-auto, auto, touch screen operation, PLC or computer
Air Pressure
0.5-0.8MPa
Water Temp.
≤25°C
Water Pressure
≥0.2MPa
Total Power
25~65KW
45~85KW
65~105KW
85~115KW
95~125KW
100~130KW
Output Frequency
Voltage 380V,Frequency 50HZ/60HZ
Occupied area
15~50m²
15~50m²
25~55m²
25~55m²
35~55m²
35~55m²
Remark
Customization



Main Features

1. Plated tile gold or silver film is bright and delicate with fast coating.
2. Well-adapted, simple maintenance, stable work.
3. Non-standard special equipment design and manufacturing shall be based on customers' product, production and specific requirements on film.
4. Magnetron target, medium frequency twin targets and etc can be installed additionally.


Details
Luxury Crystal Lighting PVD Plating Machine Multi Arc Ion Coating 5



      Name: Fumace Chamber
      Brand: JXS
      Original: China
      Furnace size: Φ1600*H1800, it applies the                  material of stainless steel #304, 10mm thick.

      Lower board is made of carbon steel of 35mm              thick.



Name: Multi-arc target
Brand: JXS
Original: China
Install 16 pcs of multi-arc targets, seperated by 2 sides. Size of target material 100mm, indirect water-cooling.

Luxury Crystal Lighting PVD Plating Machine Multi Arc Ion Coating 6
Luxury Crystal Lighting PVD Plating Machine Multi Arc Ion Coating 7



      Name: Roots Pump
      Original: China
      ZJP-1200, national famous brand, durable, little          vibration, high vacuum degree, stable, extraction
speed: 1200 L/s; power: 11KW.


Company Information
Luxury Crystal Lighting PVD Plating Machine Multi Arc Ion Coating 8



Foshan Jin XinSheng Equipment CO., LTD., is a vacuum coating machine manufacturers. The company is located in foshan city with beautiful environment.
Vacuum coating equipment series of the company including: multi-arc ion coating equipment, medium frequency magnetron vacuum coating equipment, vacuum evaporation plant, electronic gun coating equipment, tool special coating equipment, gold tube special coating machine, continuous coating production line etc. Various vacuum plating equipment is widely used in optics, lamp, electronic, ceramics, glass, mosaic, building materials, hardware, cutters, tools and moulds, watch, medical, automobile, spaceflight and other high-tech industries, and it has succeeds in developing coating process scheme to meet different needs for the customers. Standing in the perspective of customers, saving every bit of a drop for customers, is our goal of being a manufacturing of environmental protection equipment. Our company will do our best to provide you with the best quality vacuum coating equipment.


Packing and shipping
Luxury Crystal Lighting PVD Plating Machine Multi Arc Ion Coating 9
FAQ

Q1: How about your company?

A1: We are a leading manufacturer and provider of total integrated supply chain solutions for vacuum coating machine.

Q2: How about the quality control about our products?

A2: We have the ISO9001 QMS-Quality Management System.

Q3: Do you provide after-sales service?

A3: After-sales problems shall be solved on line within 48 hours.

Long-term product solution and remote technical support is provided.

Q4: What about the payment terms?

A4: T/T and it is also flexible according to different types of machine.

Q5: About the package:

A5: nude packing or wooden case carton container.

Q6: Do you provide the second-hand machine?

A6: Yes. We also provide second-hand machine, you can provide your requirements to our salesman.
