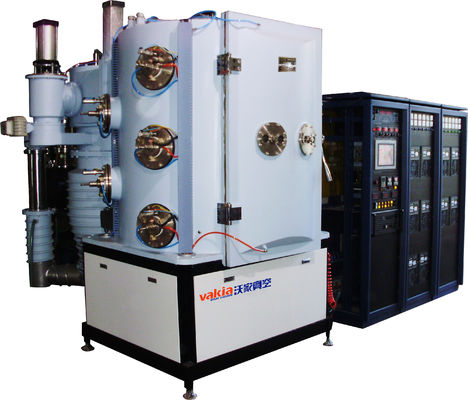

Mini Plastic High Vacuum Metallizing Machine Electric Arc Power

Mini Plastic High Vacuum Metallizing Machine Electric Arc Power

Mini Plastic High Vacuum Metallizing Machine Electric Arc Power
Mini Plastic High Vacuum Metallizing Machine Electric Arc Power
Mini Plastic High Vacuum Metallizing Machine Electric Arc Power
Product Details:
Place of Origin: China
Brand Name: JXS
Certification: CE
Model Number: JXS-1000
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: As per configuration
Packaging Details: Wooden case, plastic film
Delivery Time: 70 working days
Payment Terms: L/C, T/T
Supply Ability: 100 Sets/Year
Contact Now
Detailed Product Description
Type: Coating Production Line Material: Ceramic
Warranty: 1 Year After-sales Service Provided: Engineers Available To Service Machinery Overseas
Usage: Sculpture Coating Film: Decorative Film
Coating Color: Rose Gold Technology: Ion Coating
High Light:

High Vacuum Metallizing Machine

,

Electric Arc Power Vacuum Metallizing Machine

,

Sculpture Vacuum Metallizing Machine

Mini Plastic High Vacuum Metallizing Machine In China







Foshan Jin Xinsheng vaequipment. co., LTD. Is a vacuum coating equipment, vacuum coating machine manufacturing, design and application of technology manufacturers. The company is located in foshan city with beautiful environment.
This company produces the vacuum coating equipment series: many arc ion plating equipment, intermediate frequency magnetron vacuum coating equipment, evaporation vacuum coating equipment, coating equipment, tools, special coating equipment, coating machine for gold tube, continuous coating line, vacuum coating equipment. All kinds of vacuum plating equipment widely used in optics, tubes, electronics, ceramics, glass, Mosaic, building materials, hardware, tools, moulds, clocks and watches, medical, automotive, aerospace and other high-tech industries, has been successfully developed for the customer to meet different requirements of coating process. Would rather not do equipment, also do not deceive customers, in line with professional, comprehensive and active management idea, in time to play a leading technology, adhere to the innovation of the enterprise purpose, with quality and service return customers. Standing in the perspective of customers, for customers to save every bit of a drop of, is also my goal of the company is manufacturing vacuum coating of green environmental protection equipment, wholeheartedly provide you with the best quality vacuum coating equipment.









Model

Dimension

JXS-1800 JXS-2000 JXS-2800
1800*1800mm 2200*2000mm 2800*1000mm
Coating mode and main confirguration



multi-arc targets



multi-arc targets



multi-arc targets

Power source Electric-arc power, Filament power,
Process gas control Mass flowmeter + Electromagnetic ceramic valve
Vacuum chamber structure



Vertical side opening door, pump system postposition, double water cooling

Vacuum system

Molecule pump +Roots pump +Mechanical pump(5.0*10-5Pa)

Diffusion pump +Roots pump +Mechanical pump(5.0*10-4Pa)

Workpiece baking temperature



Normal temperature to 350 centi-degree PID control, radiation heating.

Workpiece motion mode Public rotation Frequency control: 0-20 rotation per minute
Measure mode Number display composite vacuum gauge: from atmosphere to 1.0*10-5Pa
Control mode Manual/Automatic/PC/PLC + HMI/PC four choice of control mode
Remark We can design the dimension of the equipment according to customers special technique requirement.
