One-Stop Service for PVD Vacuum Coating Machine.
From PVD vacuum coating factory building to consumable items and spare parts offering.
 |
| Place of Origin: | China |
| Brand Name: | JXS |
| Certification: | CE |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden Case, Plastic Film |
| Delivery Time: | 60 Working Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 Sets/Year |
| Structure: | Vertical Single Front Door | PVD Coating Technology: | Multi Arc |
|---|---|---|---|
| Vacuum Chamber Inner Size: | Custom Made | Vacuum Chamber Material: | Stainless Steel |
| Accessory Equipment: | Water Tower, Water Pump, Air Compressor, Oven | Titanium Coating Colors: | Gold, Rose Gold, Blue, Gray, Black, Rainbow |
| High Light: | Bath Mixer Titanium Nitride Coating Machine,Vertical Door Titanium Nitride Coating Machine |
||

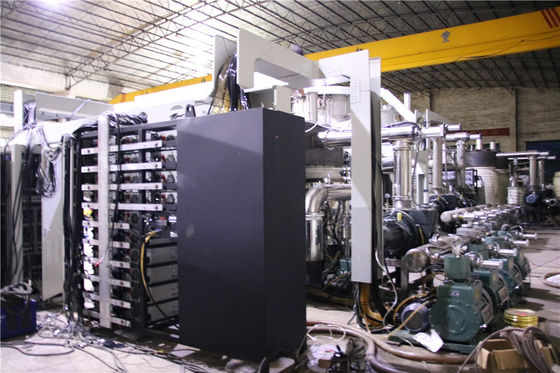

Decorative Colors Bath Mixer Titanium Coating Machine
Other Technical Parameters List
| Arc Target Size | Diameter100mm x Thickness40mm |
| Arc Power Supply | 200A |
| Bias Power Supply | 1 Set |
| Needed Things | Water, Electricity, Coating Gas(Ar, N2, C2H2, O2), Compressed Air |
| Arc Target Type | Titanium, TiAl, Chromium, CrSi, etc. |
| Rotation Stand | 1 Set |
In multi arc coating, titanium target is enough for all decorative colors, like gold, rose gold, blue, gray, black and rainbow by changing coating gas. What's more, titanium arc target is the lowest cost. Therefore, that makes it as the most popular target type among decorative multi arc PVD coating.
How to get different coating colors? It is high current from arc power supply to heat up titanium target(or other targets) into ion reacting with coating gas(Ar, N2, C2H2, O2), then deposit on products.
Titanium Coating Bath Mixer
After titanium coating, bath mixer will show colorful effect for nice viewing feeling. Strong adhesion titanium metal film will make the mixer longer using life. Except bath mixer, we can also use the titanium coating machine for tableware, hardware, etc.
FAQ
1)Can you send me titanium coating machine price list?
We will send specific quotation according to your requirement.
2)Except bath mixer, can we put other items(like tableware) into vacuum chamber to coat together?
Sure, if you need to coat the same color on both products.
3)Do you have any popular titanium coating machine size?
Diameter1000mm x Height1000mm, D1200xH1500, D1600xH2000, D2000xH3000, etc.
